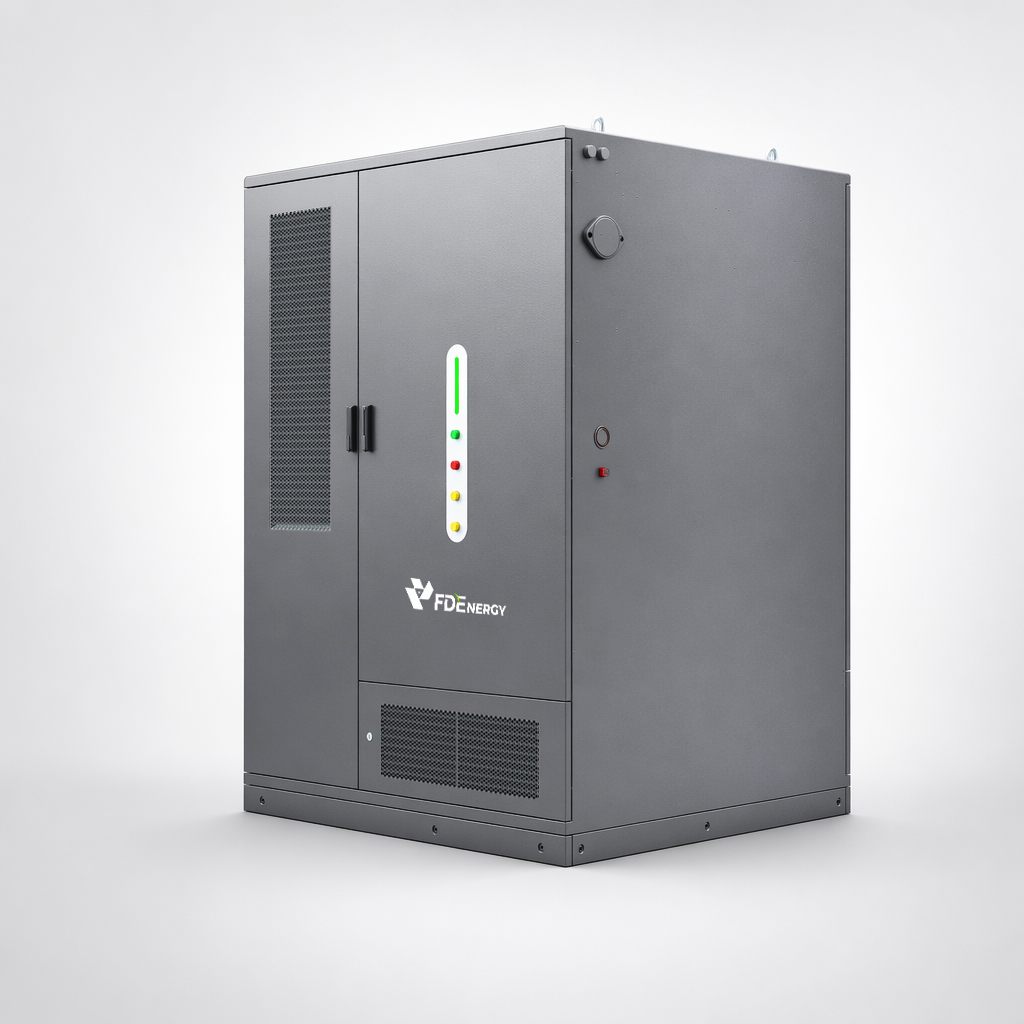

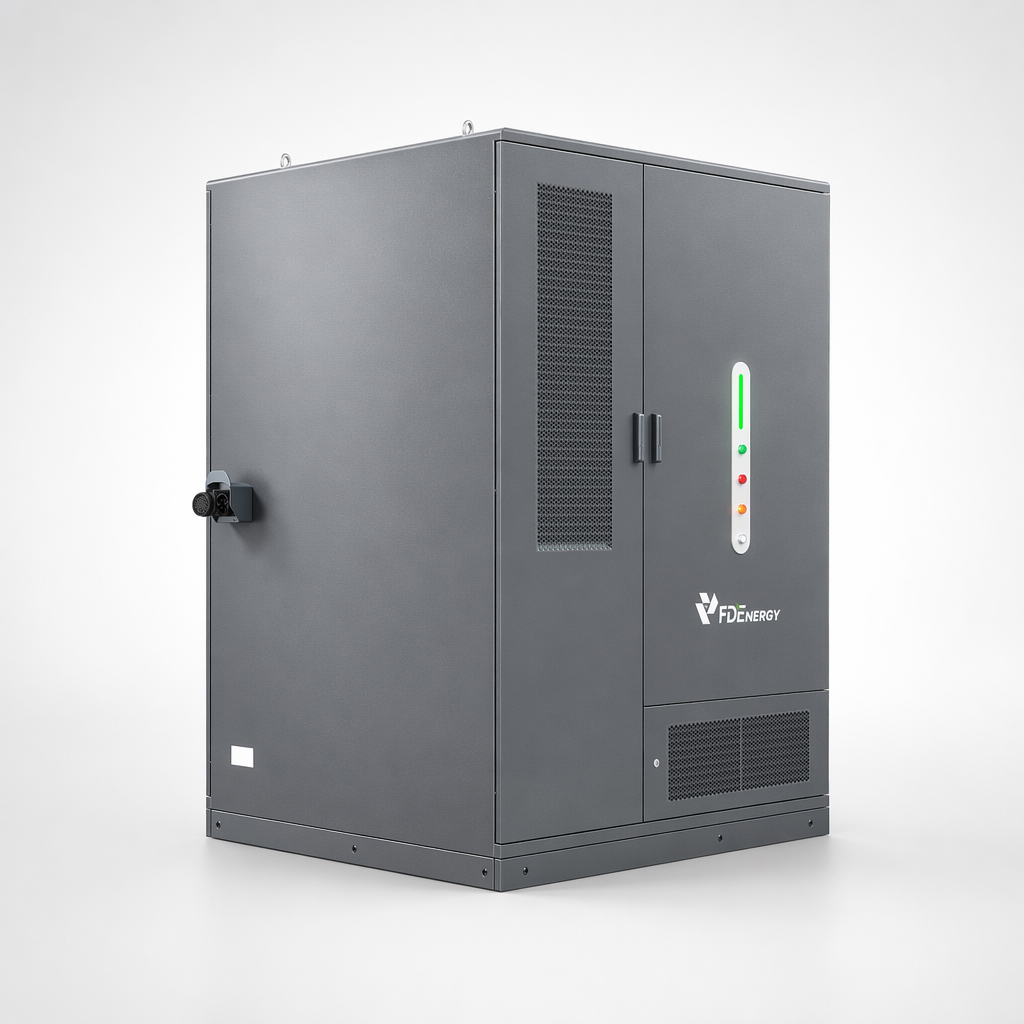

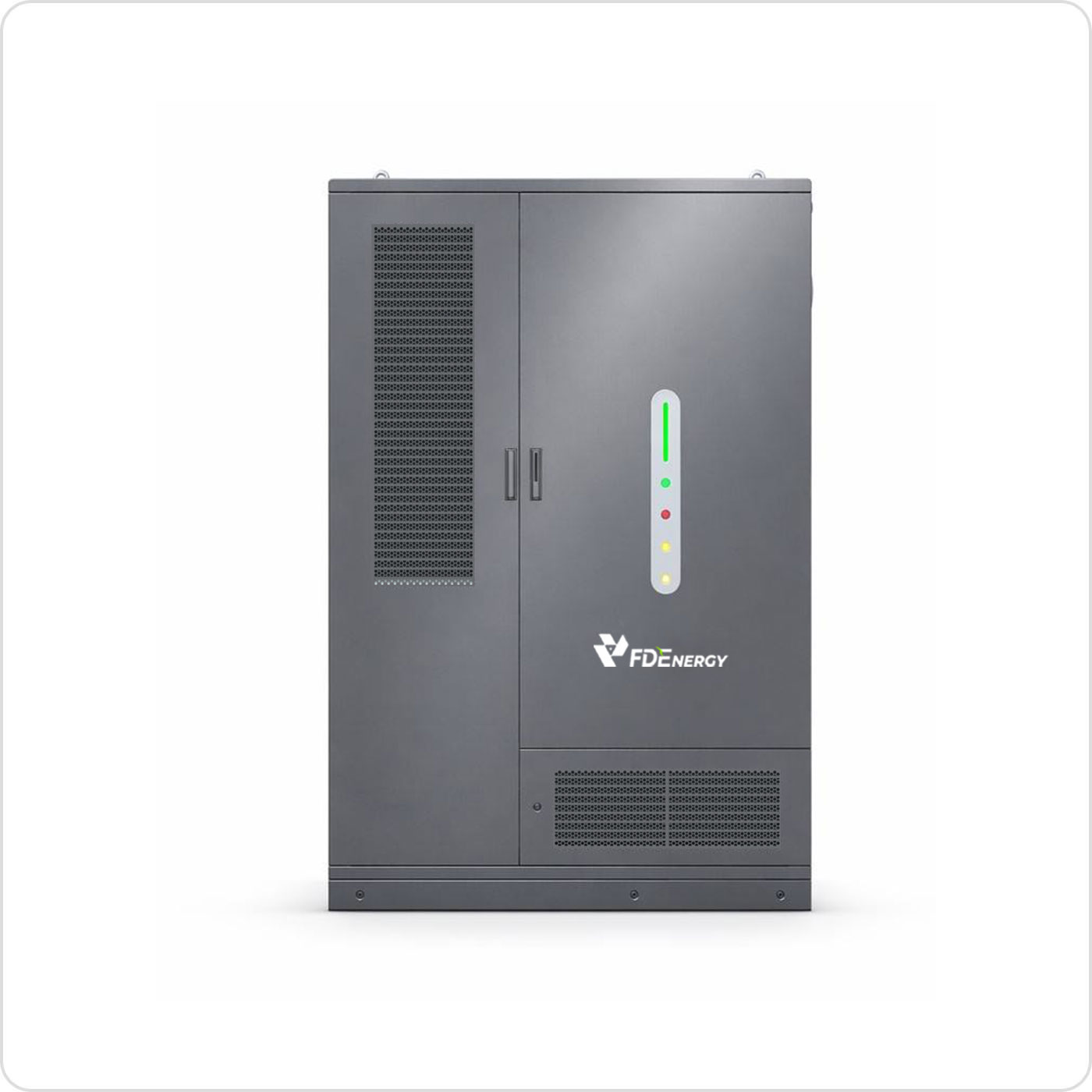

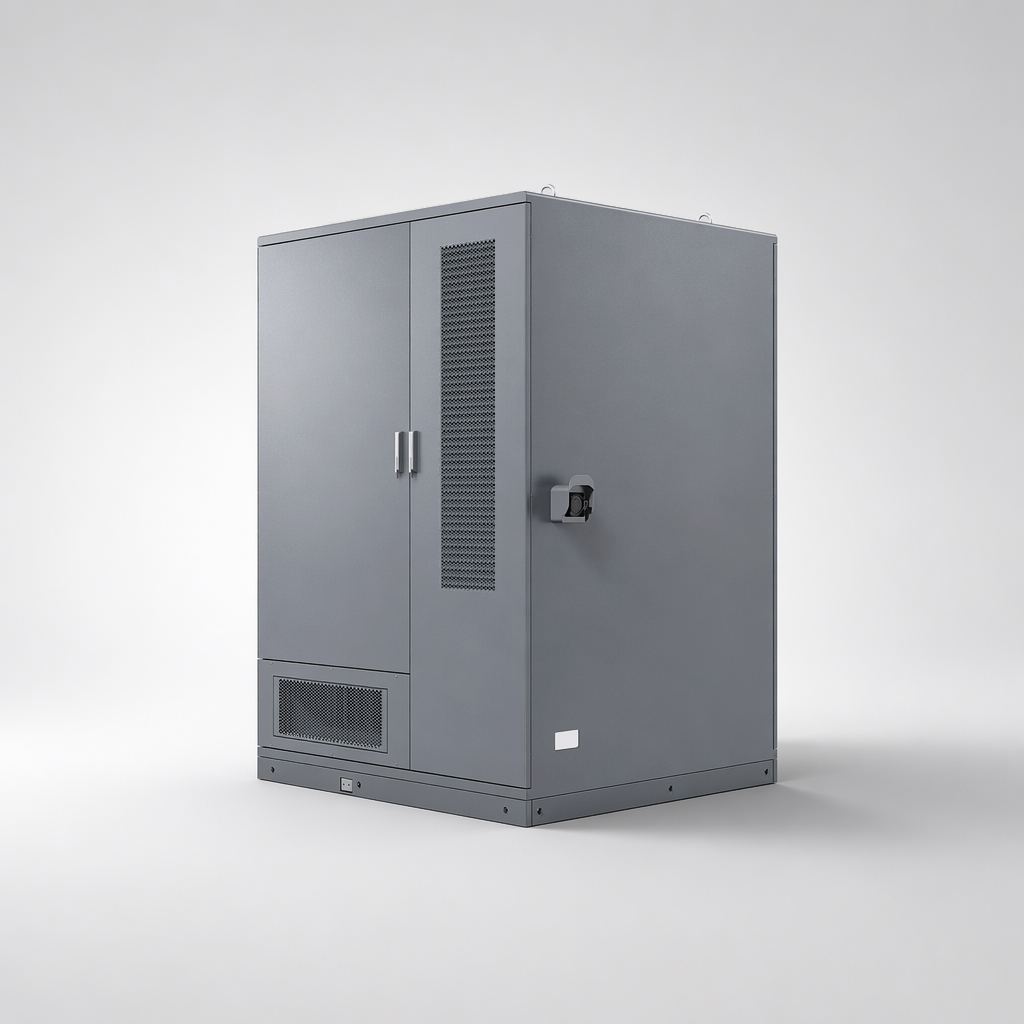

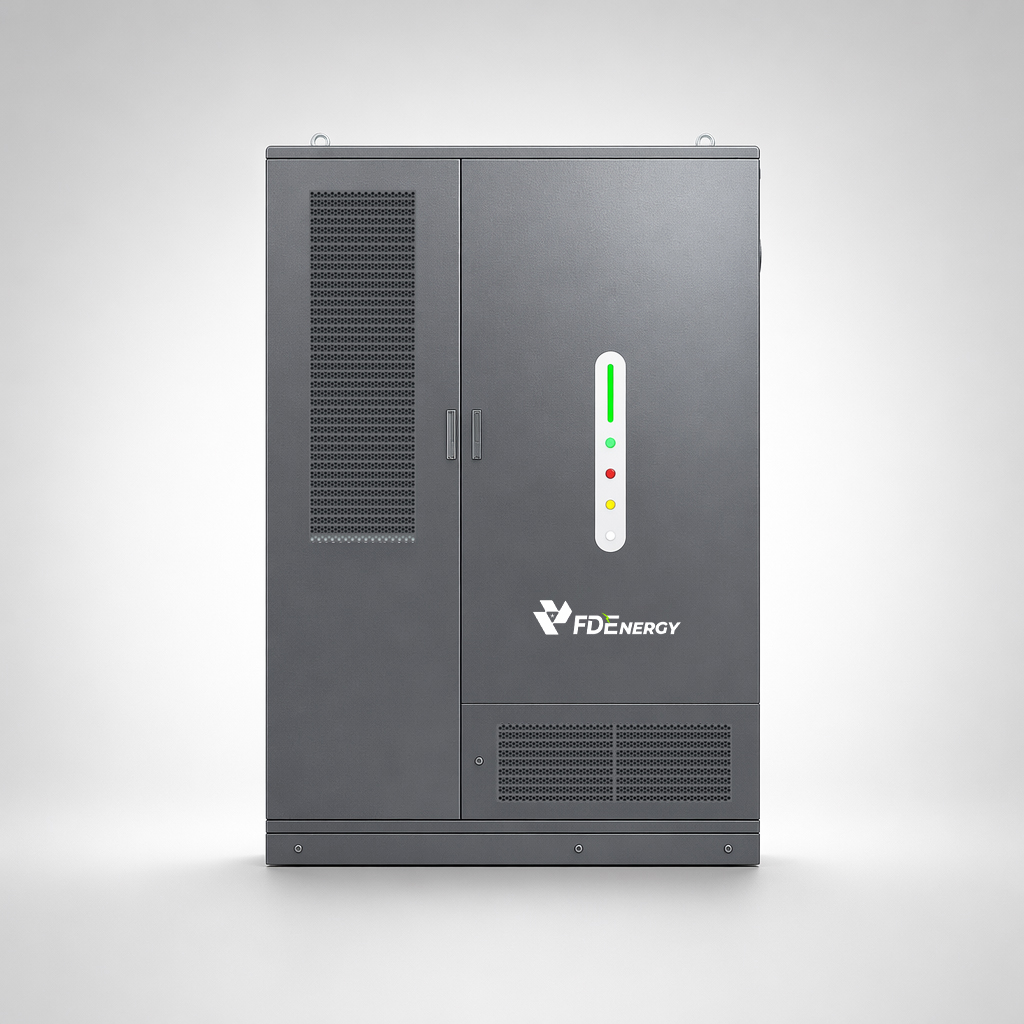

PV-Diesel-Storage Hybrid System – 110kWh/261kWh Off-Grid BESS
●Factory founded
Novel appearance, multi-level noise reduction, and atmosphere light design;
●Multi-energy Complementation
PV power (free clean energy) is prioritized, with diesel as backup/energy supplement and charging for additional energy supply.
●Low Cost & High Returns
PV power features zero fuel cost, diesel consumption can be reduced by 80%, the intelligent system cuts labor input, and surplus power can be fed into the grid for revenue in specific scenarios.
●MPPT Technology
Optimizes PV power generation efficiency in real time, increasing the system’s power output by 10%-20%.
●Low Carbon
PV power replaces a large amount of diesel-generated electricity,reducing noise emissions by over 50% and aligning with the carbonneutrality trend; charging technology enables mobile energy supplementation to lower reliance on diesel generators.
●High Stability
PV + energy storage stabilizes power fluctuations, diesel generators provide emergency energy supply, and intelligent monitoring, remote management, and dispatching strategies prevent power outages; the energy storage system supports seamless intelligent switching between off-grid and on-grid modes.
● Intelligent dispatching strategy of "photovoltaic priority, energy storage regulation,
and diesel backup".
●Complete sealed isolation of electronics and electrical components; independent
design of heat dissipation air ducts for PCS (Power Conversion System), photovoltaic
modules, and STS (Static Transfer Switch).
●Capable of with standing long-term high-power output and extreme harsh weather
conditions such as high temperature, high altitude, extreme cold, high humidity, high salt
spray, rainstorms, and sandstorms.
●Strong equipment expansion compatibility, supporting compatibility with charging
guns or supplementary power sockets.
●High safety performance: the whole machine is equipped with perfluorohexanone
(fire extinguishing agent) and smoke & temperature alarms.
●The energy storage system has a seamless switching function; after the diesel generator
is turned off, the load side will not be cut off from power.
●There is a communication function between the energy storage system and the diesel
generator, enabling control of the diesel generator's start/stop and power adjustment, etc
Battery parameters
Charging parameters
whole machine parameters
